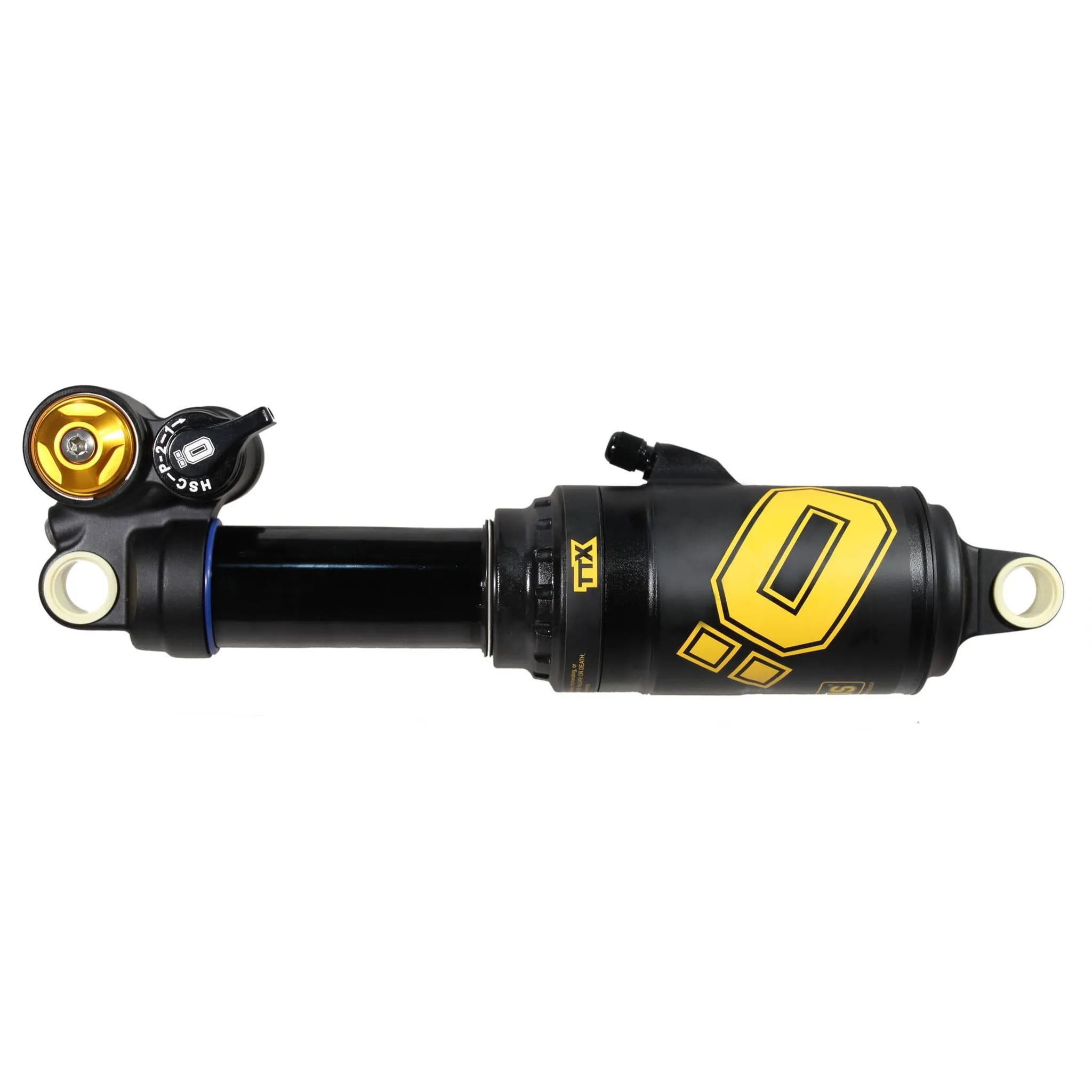

TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
TTX Twin tube design for consistent damping performance on all types of terrain
Extra bushing overlap for improved side load management
Specific wiper seal and air sleeve lubrication reduce friction
External rebound, low-speed and high-speed compression adjustment
Climb mode to reduce suspension movements during climbs
Includes (2) air spring volume spacers
Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)| model | TTX2 Air |
| stroke | 60/62.5/65mm |
| eye-eye | 230mm |
